Products Description
U-shaped MoSi2 Rod is a high-temperature and anti-oxidation resistance heating element based on molybdenum disilicide. When used in a high-temperature oxidizing atmosphere, a bright and dense quartz (SiO2) glass film forms on the surface, which can protect the inner layer of the silicon molybdenum rod from further oxidation.
Product parameters
Specification requirements for U-shaped silicon molybdenum rod:
Material Grade: 1700, 1800
Diameter: D1/D2, mm/mm
Hot zone length: Le, mm
Cold end length: Lu, mm
For example:
U-shaped shape, material grade 1800
D1=3mm, D2=6mm, Le=140mm, Lu=125mm, A=25mm
Represented as Specify as:
Hongyuan Super MS18, U-shaped, 3/6 × 140 × 125 × 25
Product detail drawings
Selling advantages/features/characteristics of the product
1) Product Features
Chemical stability: Under high temperature oxidation atmosphere, a dense quartz (SiO2) protective layer is formed on the surface of the component to prevent further oxidation of MoSi2.
Higher operating temperature: Compared with silicon carbon rods, silicon molybdenum rods have a higher operating temperature, which can reach 1700-1800 ℃ under normal use.
Suitable for various furnace atmospheres: Silicon molybdenum rods are suitable for different atmospheres, such as air, nitrogen, argon, helium, hydrogen, etc., to meet the heat treatment processing needs of different kiln customers.
2) Product application

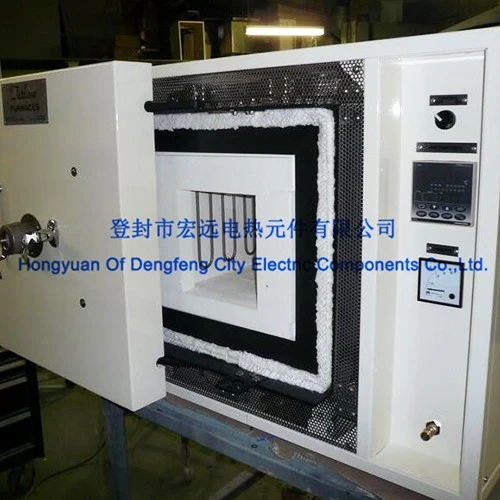

Application areas: Silicon molybdenum rods are mainly used in industrial heat treatment furnaces, experimental furnaces, high-temperature sintering furnaces, casting furnaces, glass melting furnaces, smelting furnaces, etc.
3) Product packaging
Silicon molybdenum rods are non-standard products without fixed weight packaging, usually packaged in wooden boxes and sponges.
4) Product advantages
• Customized production of multiple specifications and models to meet customer production needs.
• Both the heating end and the cold end adopt new processes, which are energy-saving and have a long service life.
• Fast delivery and optimal price.
• High quality pre-sales and after-sales service.
FAQS
